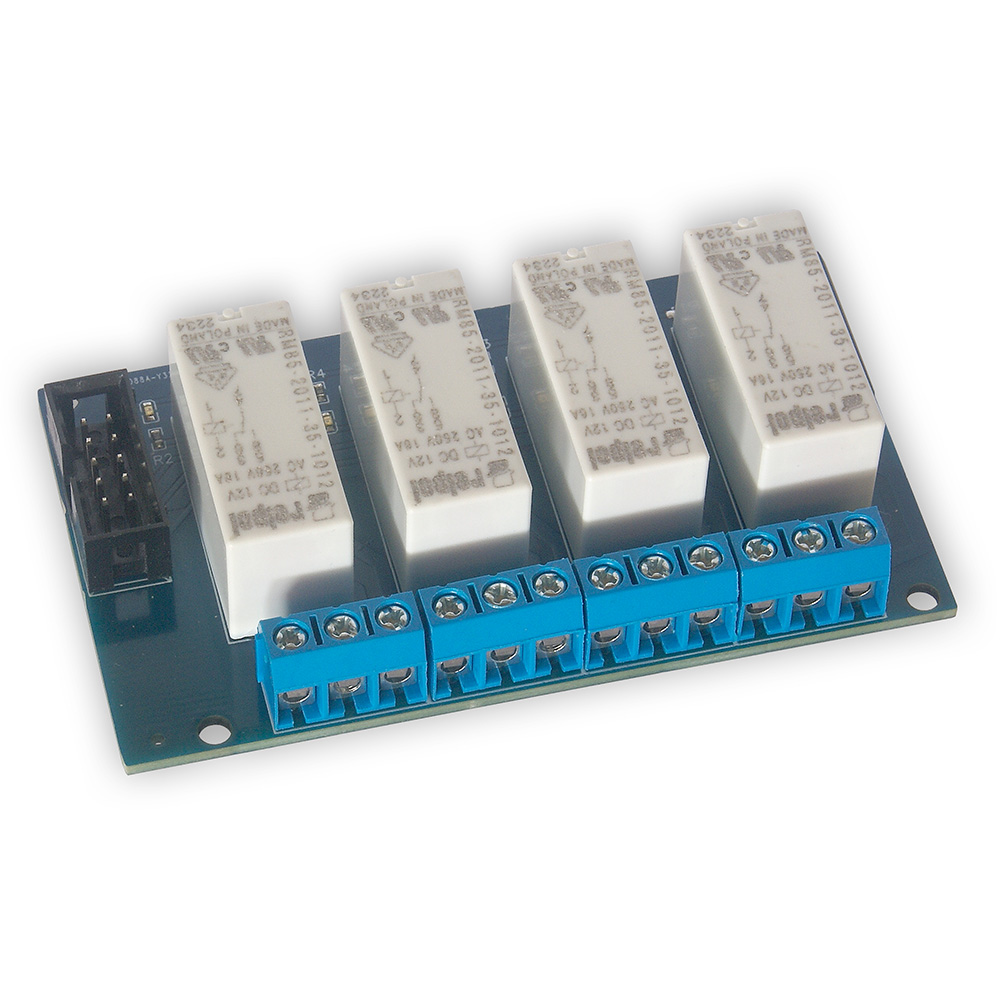

Relays board 4×16A

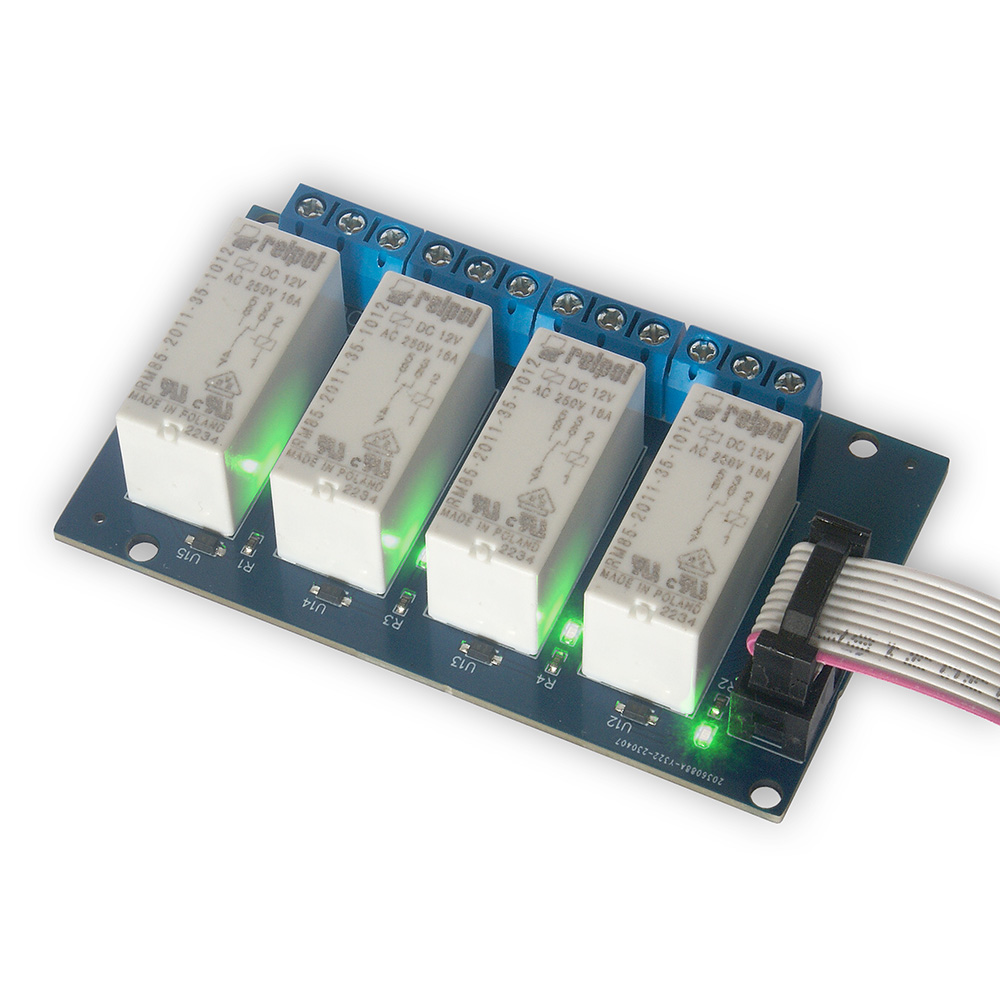

Board containing 4 high quality RELPOL relays. After connecting to Lan Controller v3/3.5/4 has the ability to turn on, off, reset each of the relays independently. Their status is indicated by LEDs. The main application is to control 4 electrical devices.
The board is powered by LAN Controller and requires a supply voltage of 9-15 V (in this range must be the Lan Controller supply voltage).

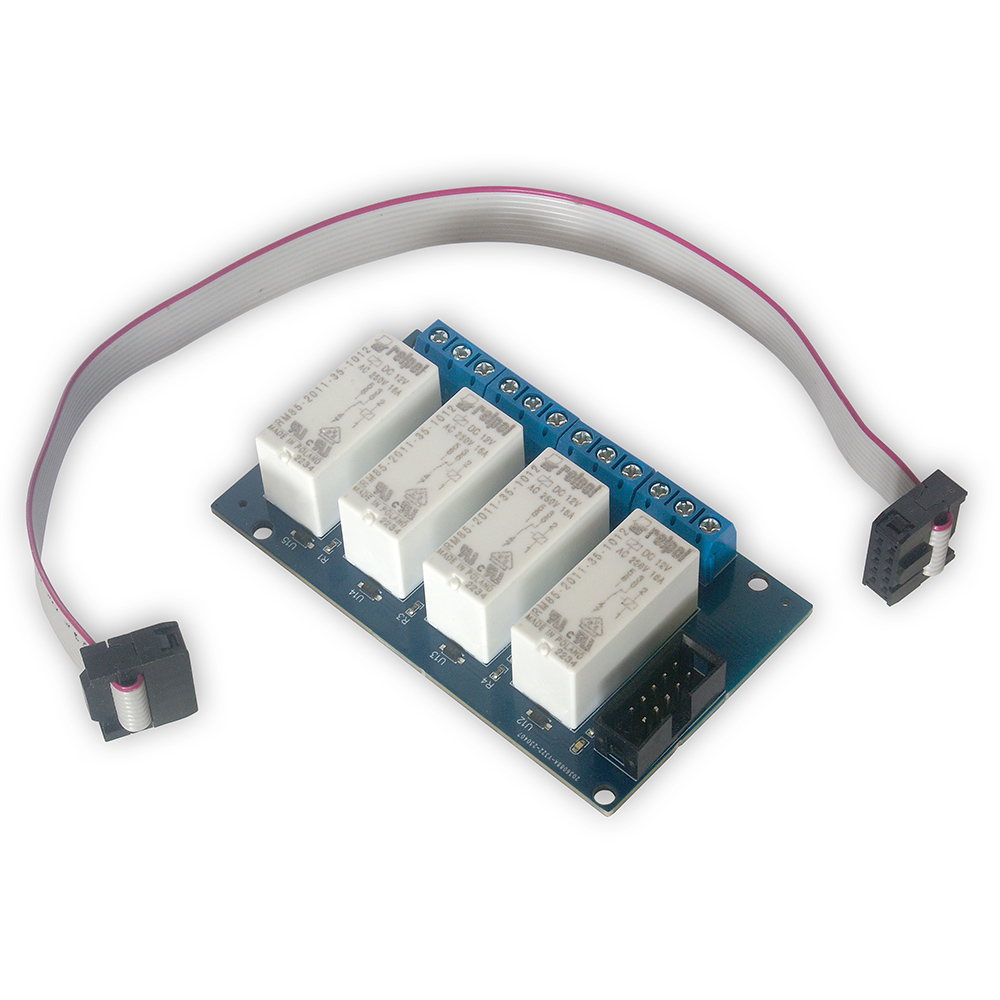

The relay board comes complete with a control cable with plugs.
Technical specifications
| Coil control voltage |
12 V |
| Number of relays |
4 |
| Relay outputs |
NO, C, NC |
| Contact material |
AgSnO2 |
| Rated load current |
16 A / 250 V AC (AC-1)
16 A / 24 V DC (DC-1)
AC-1/DC-1: non-inductive or low inductive loads, resistance furnaces
|
| Contact resistance |
≤100mOhm |
| Supply voltage |
9-15 V DC
The controller's power supply voltage should be within this range. |
