Temperature and humidity sensor ASAIR® AM2301B
Temperature and humidity sensor ASAIR® AM2301B

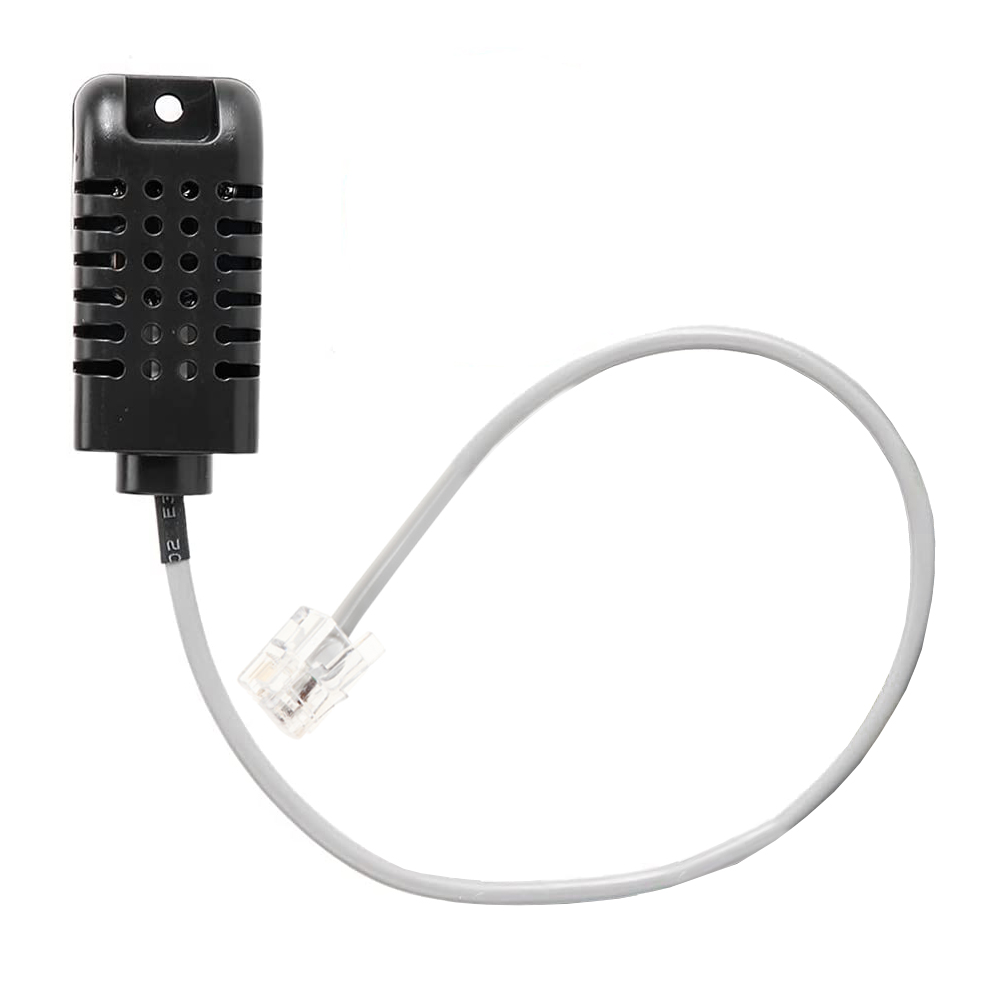

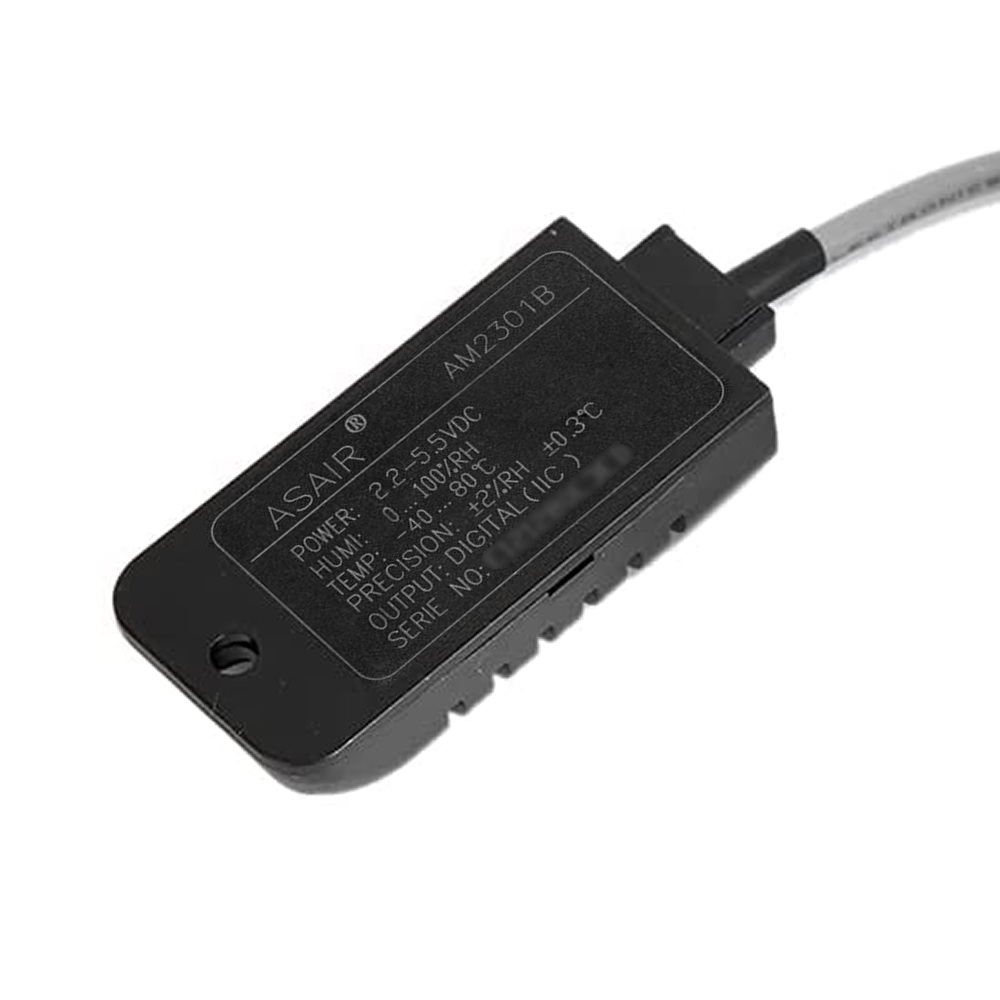

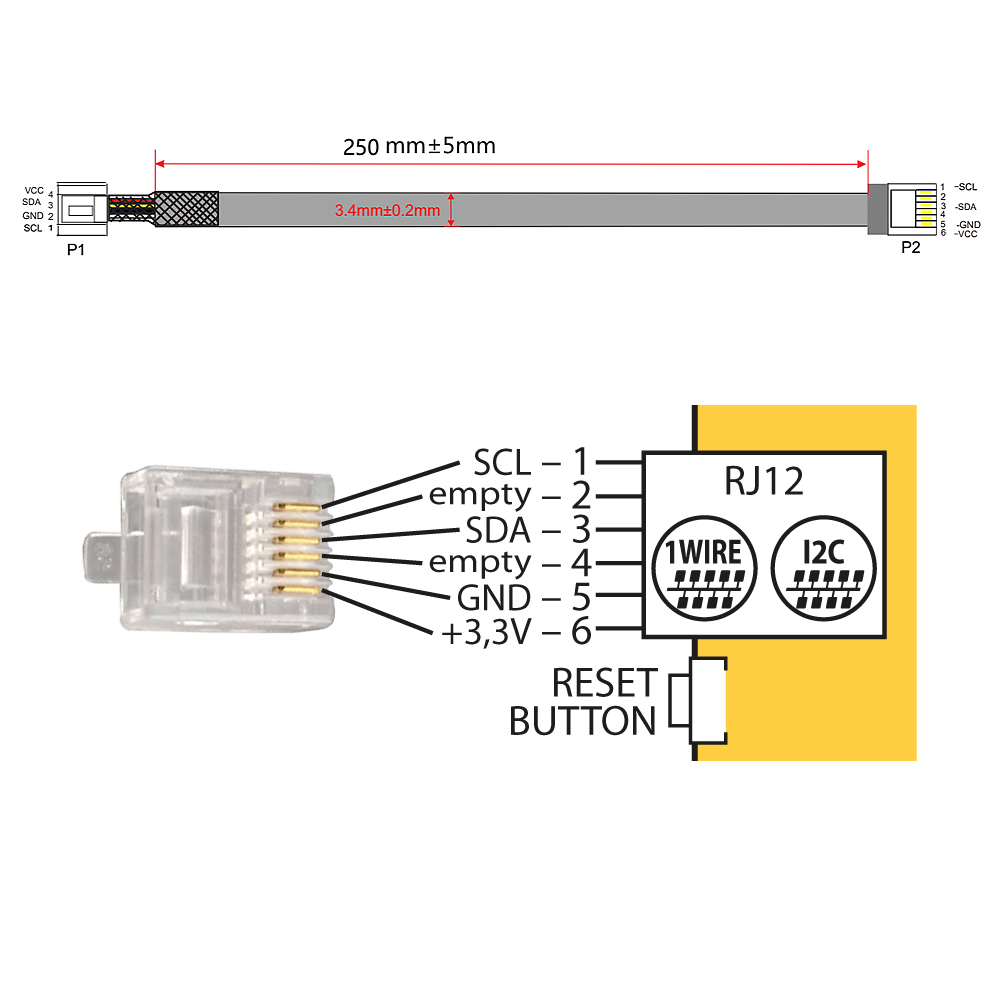

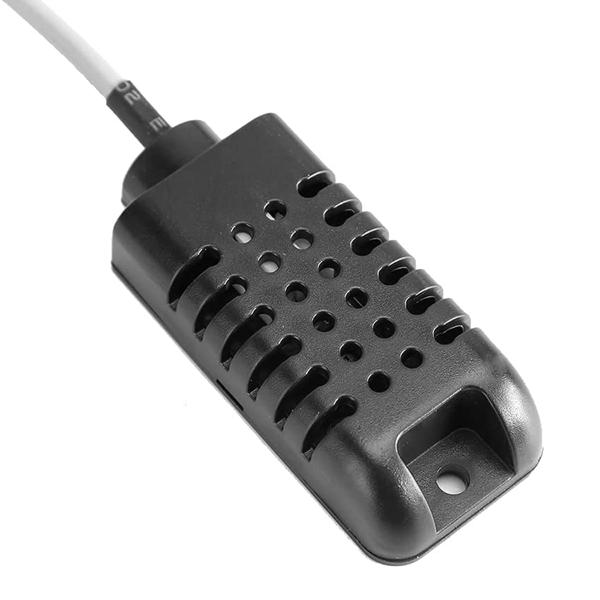

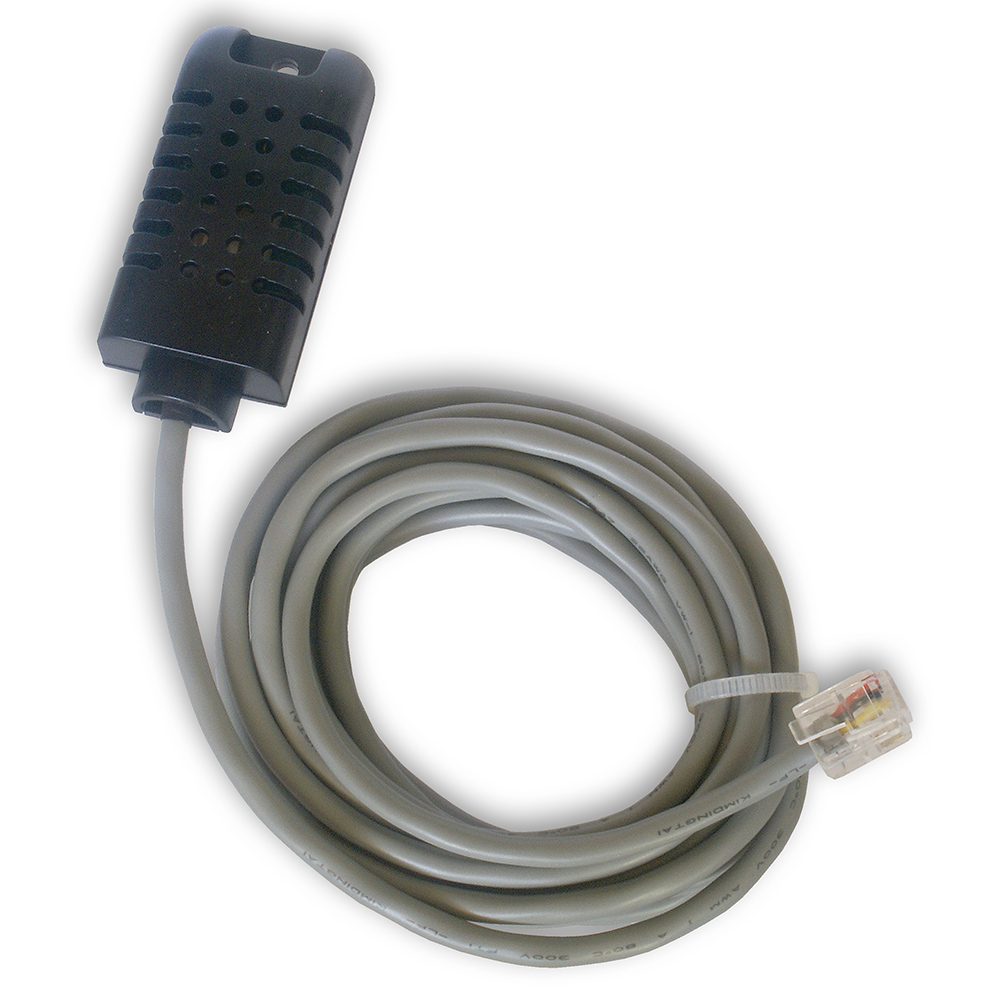

Temperature and humidity sensor with a cable terminated with an RJ12 connector (I2C bus). Compatible with LK3.9, LK4, LK4mini, tcPDU, it can also be used in projects on Arduino, Raspberry Pi, and other platforms after modifying the connector.
Technical specifications
Sensor
ASAIR® AM2301B
Communication interface
I2C
Power supply
2.2 - 5.5 V DC
Measurement range
0-100 % RH (humidity) -40 to +85 °C (temperature)
Measurement accuracy
+/- 2 % RH (humidity, at 25 °C) +/- 0.3 °C (temperature)
