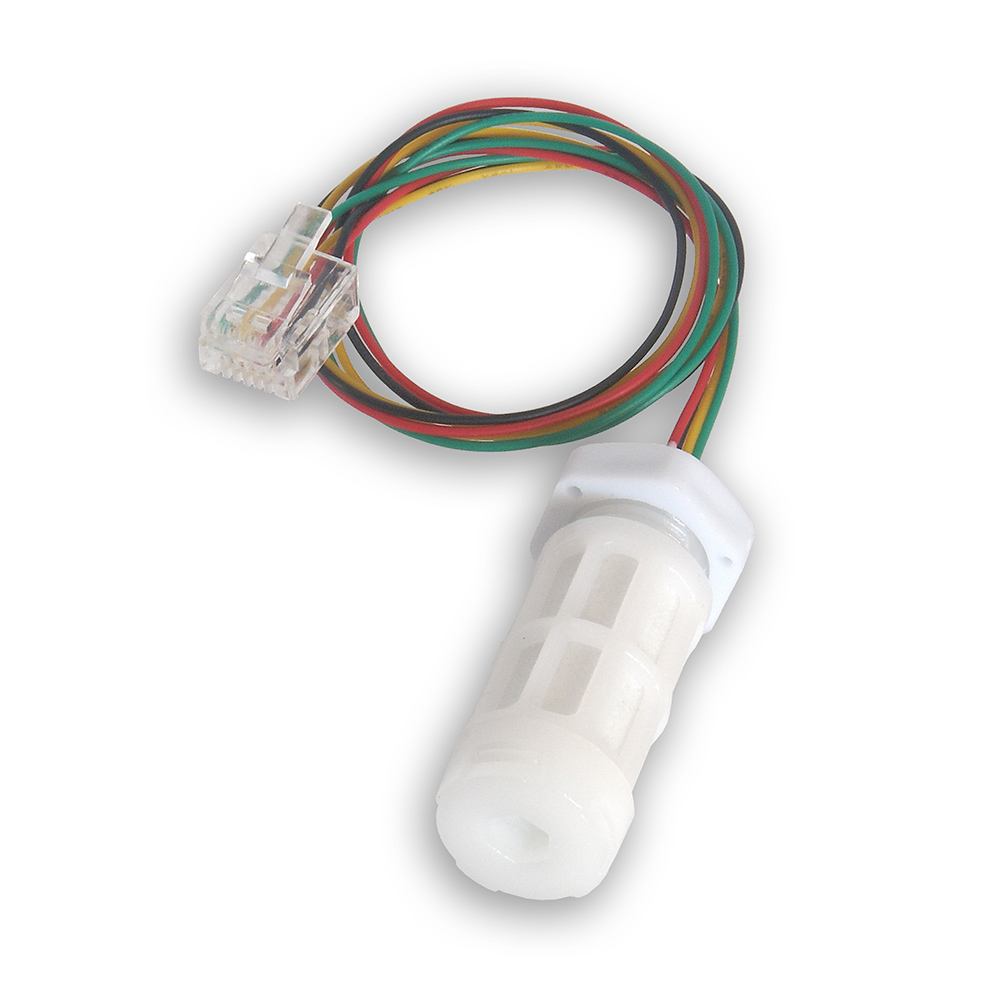

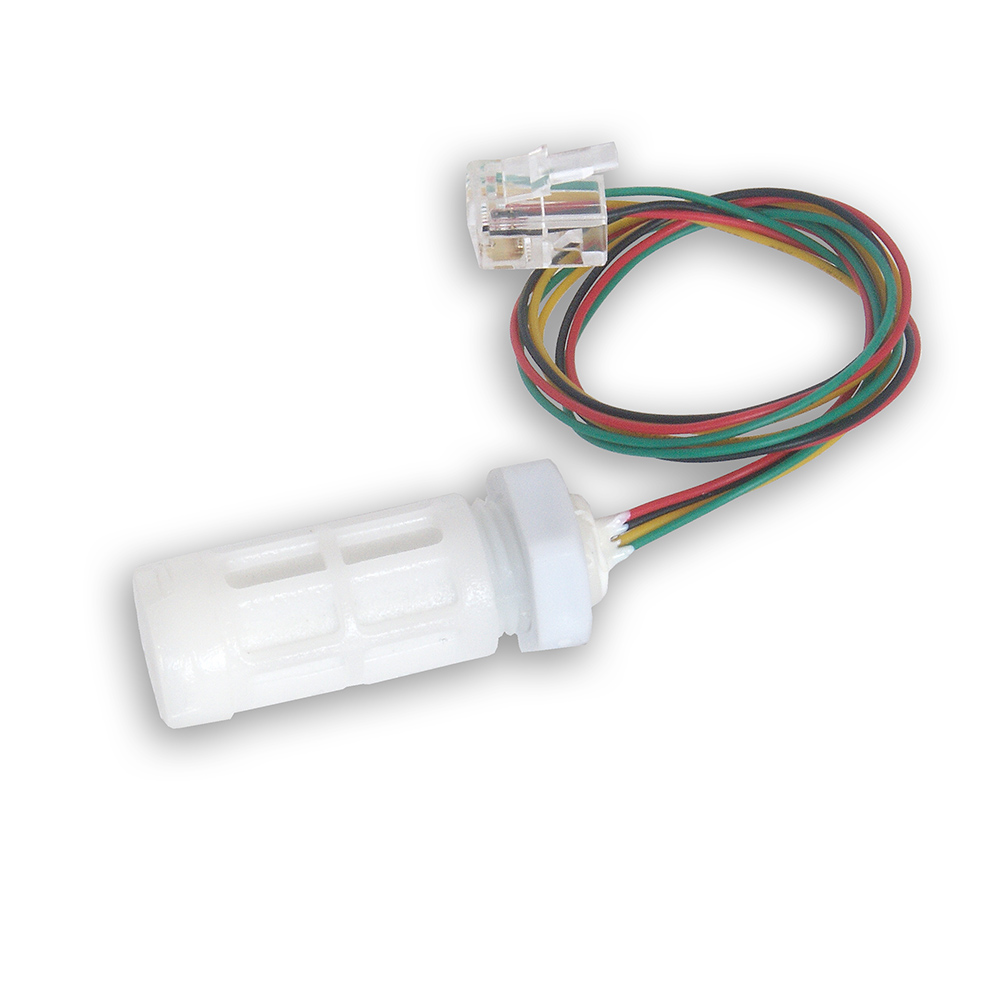

BME280 sensor with RJ12 plug

BME280 sensor with RJ12 plug

Temperature, humidity and atmospheric pressure sensor based on Bosch BME280 module, communicating via I2C bus.

Designed for indoor and outdoor use. Integrated cable with RJ12 plug facilitates direct connection to Lan Controller.

Technical specifications

Communication interfaceI2C
Protection ratingIP54
ConnectorRJ12, cable length: 28 cm
Supply voltage3,3 V
Operating range-40 do +85 °C (temperature)
0 do 100 % RH (humidity)
300 do 1100 hPa (pressure)
Humidity sensor parameters
  • Response time (τ63%): 1s
  • Accuracy tolerance: ±3 % RH (within 20–80 % RH)
  • Hysteresis: ±1 % RH
Pressure sensor parameters
  • RMS noise: 0.2 Pa, equiv. to 1.7 cm
  • Accuracy tolerance: ±1.0 hPa
Temperature sensor parameters
  • Accuracy tolerance: ±0.5 °C (within 0-65 °C)
