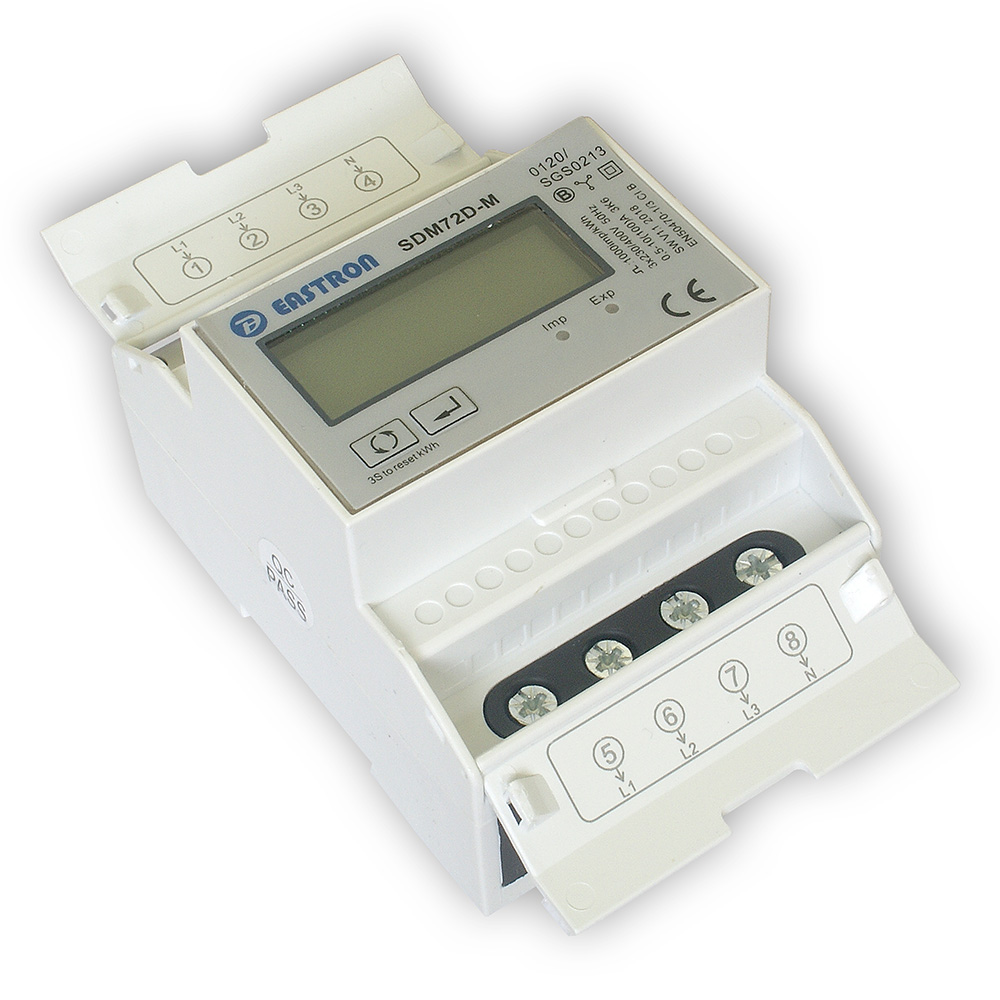

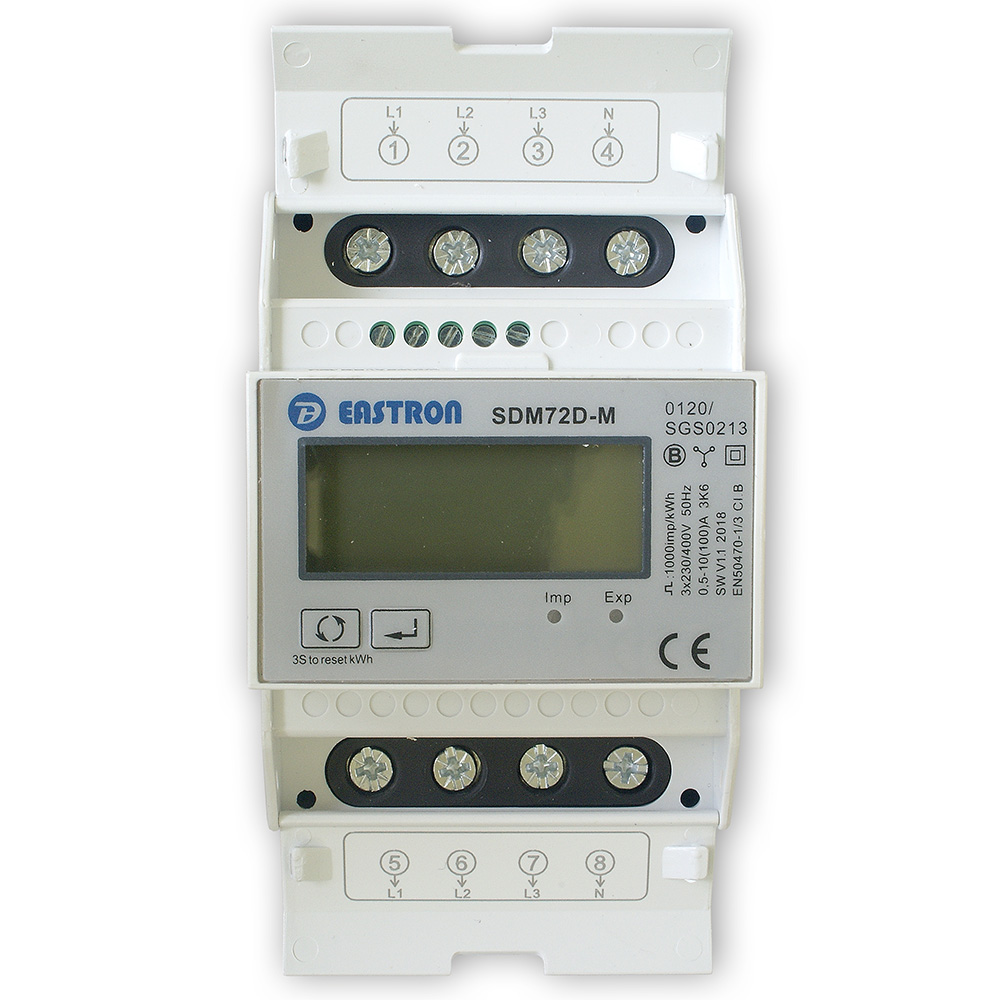

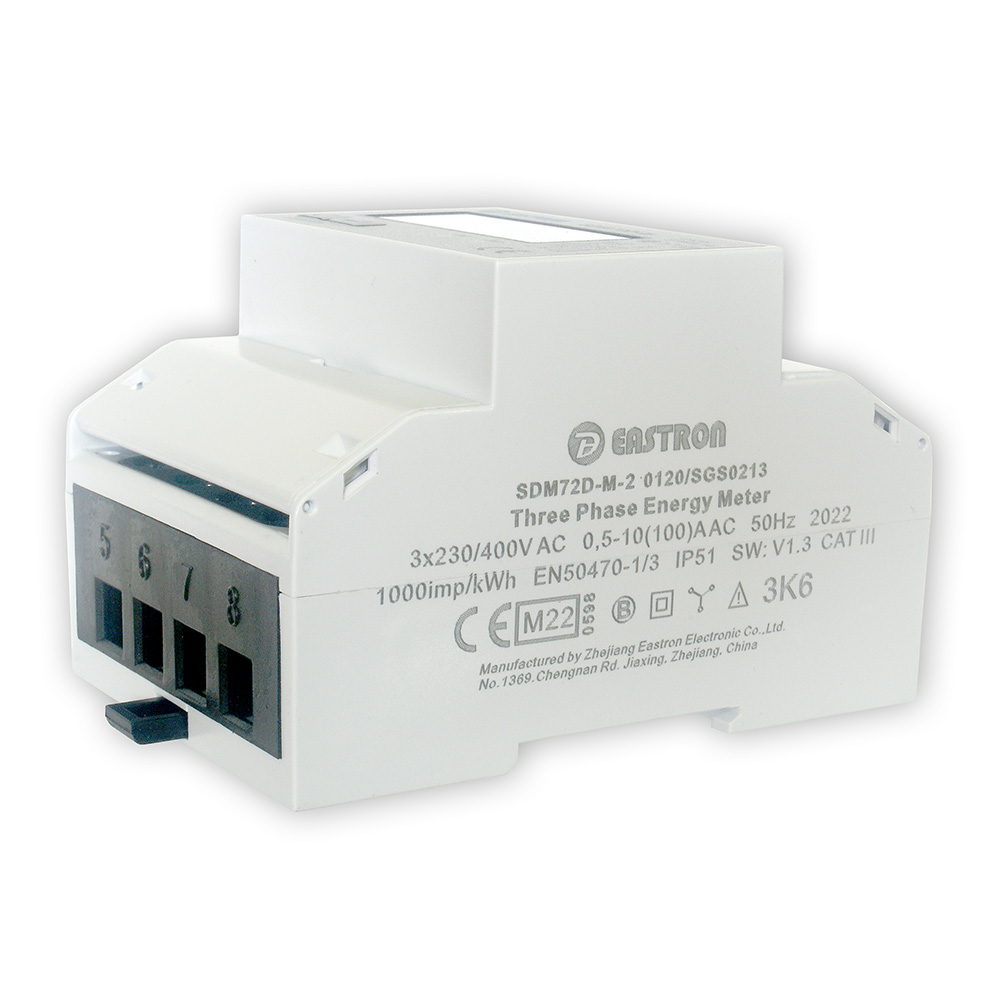

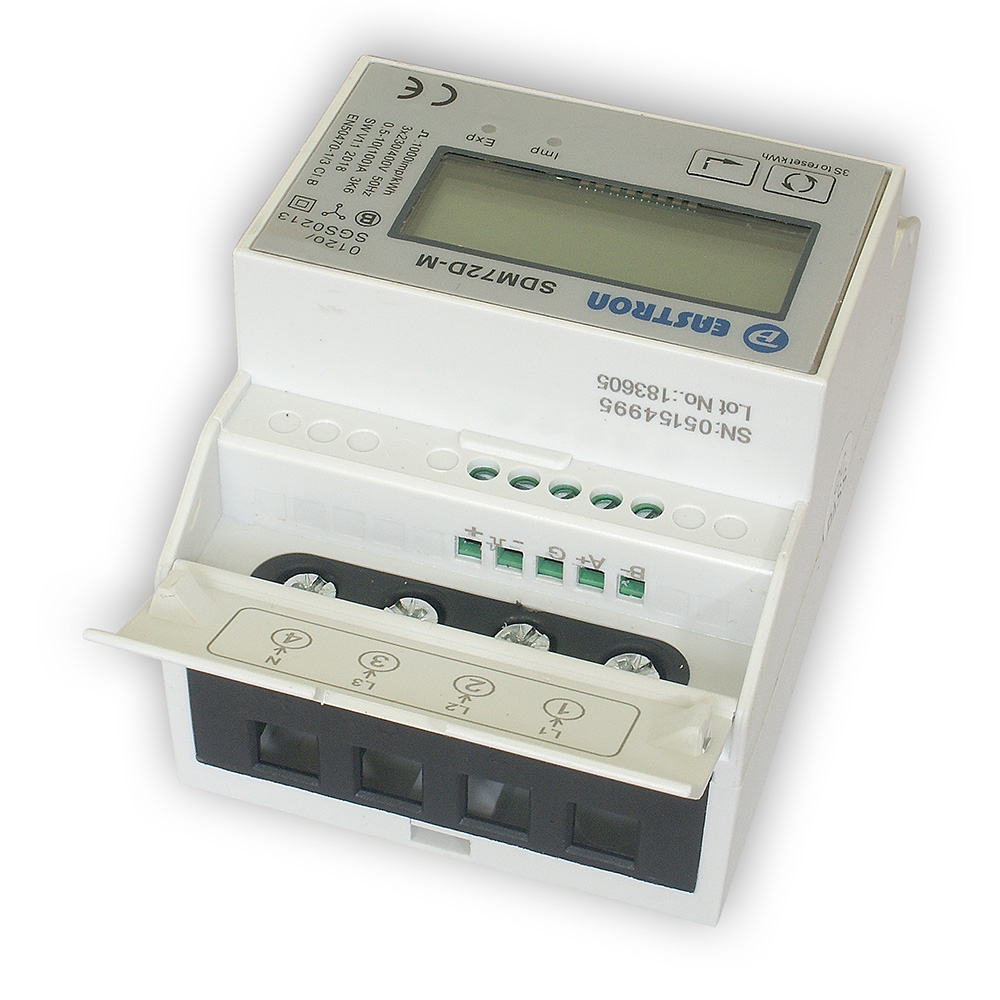

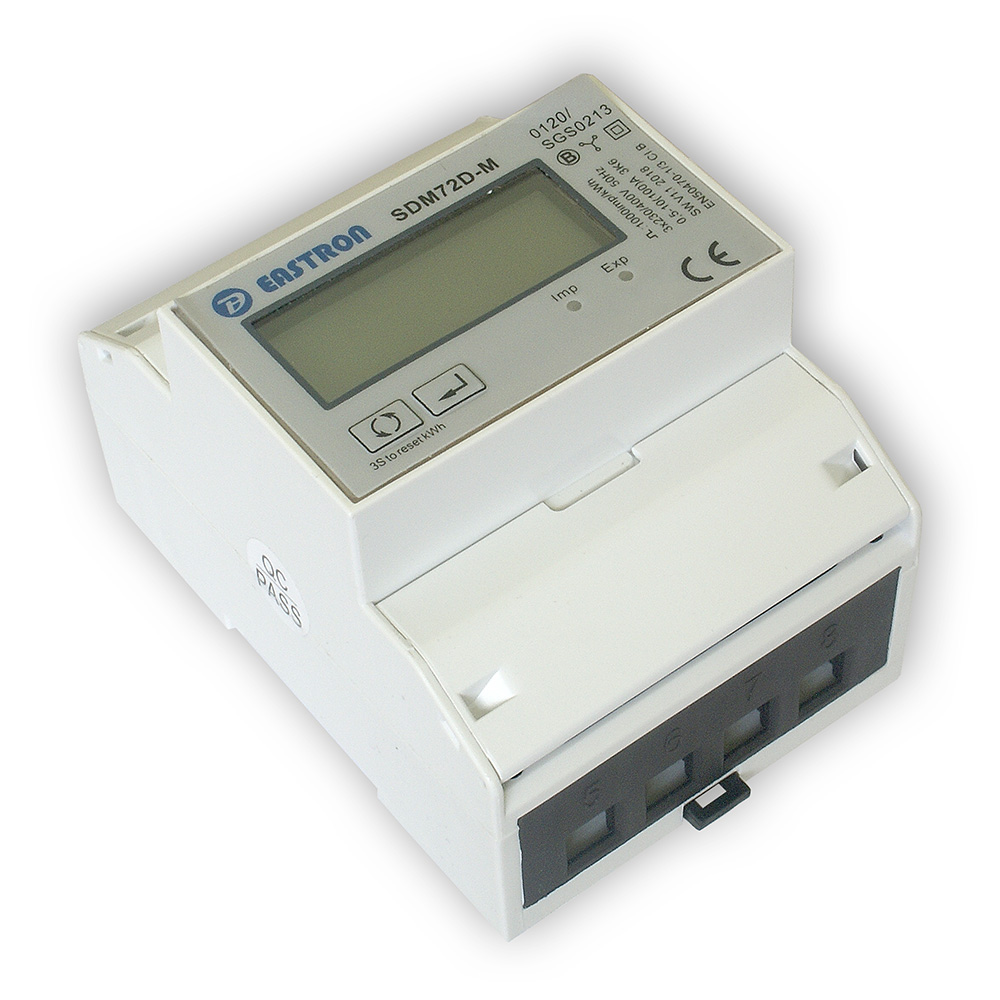

Energy meter SDM72D-M-2

The SDM72D-M-2 three-phase meter is designed to read electrical network parameters via the Modbus RTU bus.
Our Lan Controller series devices – LK3.5+, LK4, and LK4mini – support this meter, enabling integration with a remote monitoring system.

Unlike the older SDM72D-M version, the new SDM72D-M-2 offers access to a wider range of measurements. The unit measures and displays voltage, current, frequency, power factor, active power, reactive power, active energy, reactive energy, and more.

Technical specifications

• Nominal voltage (Un): 3 x 230 V AC
• Operational voltage: 80% ÷ 120% of Un (V)
• Voltage withstand: 4 KV for 1 minute
• Impulse voltage withstand: 6 KV - 1.2 μS
• Basic current: 10 A
• Maximum rated current: 100 A
• Power consumption: < 2 W / 10 VA per phase
• Display: LCD
• Operating temperature: –25 °C ÷ +55 °C
• Storage temperature: –40 °C ÷ +70 °C
• Maximum reading: 999999.9 kWh / kVarh
• Protection rating: IP51
